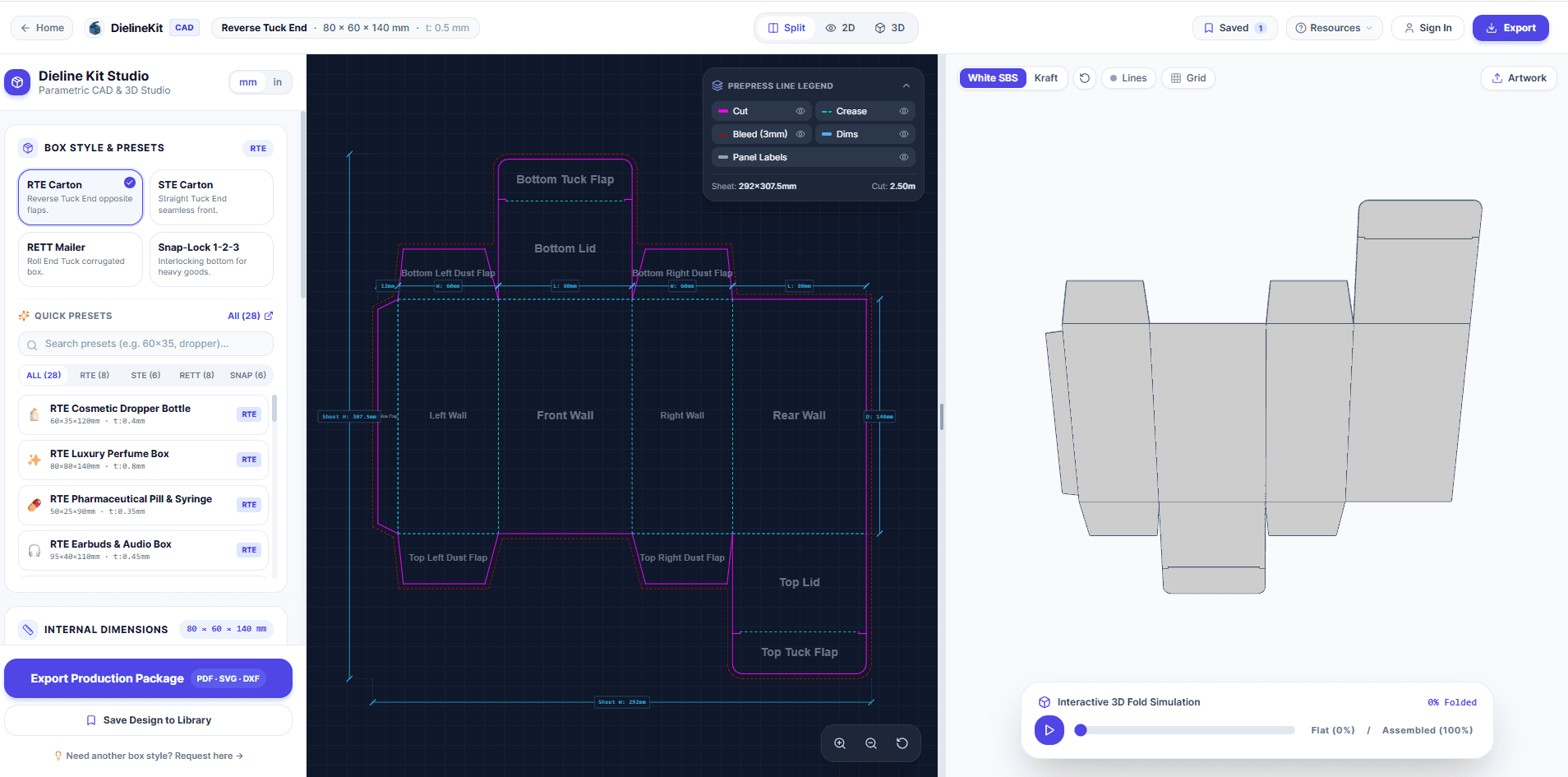

DielineKit offers an industrial-grade parametric packaging dieline generator and a 3D folding simulation studio. It allows users to create die-ready vector cutlines for folding cartons and corrugated mailers. The platform automatically calculates caliper clearances, provides real-time 3D folding simulations, and exports clean vector files in PDF, DXF, and SVG formats.

• Key Features:
• Parametric 2D vector packaging dieline generator.
• 3D WebGL folding box simulation platform with 60 FPS performance.
• Automatic calculation of caliper clearances (e.g., 1.5 × t deductions) for smooth assembly.
• Exports production-ready files: 1:1 Vector PDF, AutoCAD DXF (R12 compatible), and SVG.
• Prepress-verified layers for cut lines, crease lines, and bleed contours.
• Supports various box styles including Reverse Tuck End (RTE), Straight Tuck End (STE), Snap-Lock 1-2-3 Bottom, and Roll End Tuck Top (RETT).
• Ability to upload custom artwork onto the 3D model for preview.
• 100% web-based, requiring no software installation.

Users can start for free, with 5 free production export credits provided upon signup. These credits unlock a complete production package for a box design. The tool is engineered for commercial cutters and prepress workflows, ensuring compatibility with digital CNC cutting tables like Zünd and Kongsberg.
